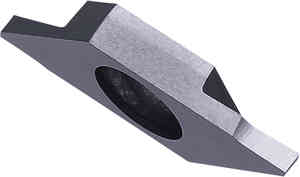

Kyocera TKF12L150NB PR1025

SKU = 8827602
Short Description = Kyocera TKF 12L150NB PR1025 Grade PVD Carbide, Indexable Cut-Off Insert
EDP = TJE16110
ISO Part Number = TKF12L150NB
Insert Grade = PR1025
Series = KTKF (KTKF-Series)

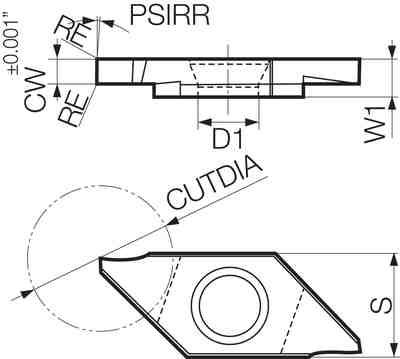

[CDX] Max Depth of Cut (mm) = 6.00
[CW] Cutting Width (mm) = 1.50
[RE] Corner Radius (mm) = 0.00
[S] Thickness (mm) = 8.70
Application = Cut-Off/Small Parts Machining
Chipbreaker = NB
Cutting Range = Medium
Full Radius = No
Hand = Left-Hand
Insert Holding Method = Screw
Insert Size = 12
Insert Style = TKF
Material = Carbide
Number of Cutting Edges = 2
Primary Workpiece Material = (P) Steel
Rake = Positive
Unit (inch/mm) = mm
Usage Classification = Light Interruption
Coating / Composition = TiCN
[D1] Hole Diameter (mm) = 5.00
[PSIR] Insert Lead Angle (Degree) = 0
Secondary Workpiece Material = (M) Stainless Steel
Cutting Edge Style = Without Chipbreaker
Hole (Yes/No) = Yes
Compatible Toolholder (Partial) = KTKFL...-12JX, KTKFL...JX-12, KTKFL...F-12
Compatible Toolholder (Full) = KTKFL6-12JX, KTKFL8-12JX, KTKFL10-12JX, KTKFL52-12JX, KTKFL62.5-12JX, KTKFL1010JX-12, KTKFL1212JX-12, KTKFL1616JX-12, KTKFL2020JX-12, KTKFL1212F-12, KTKFL1216JX-12, KTKFL1620JX-12
Cutting Width Tolerance (mm) = +0.03/-0.03
Features:
- Insert for Cut-Off for Small Parts Machining
- Without Chipbreaker
- 2 Cutting Edges
- TiCN base PVD coated micro-grain carbide
- Application: General purpose cutting of steel and stainless steel, stable and long tool life
