Mitsubishi APX3KR2004SN20S028A

Series = APX3000_LONG
Order Number = APX3KR2004SN20S028A
Hand = R
Unit of Length = M
DC = 20
DCON = 20
KAPR = 90°
LF = 125
LH = 45
APMX = 28
GAMP = +6°
GAMF = -10.9°
WT = 0,27
Cutting item count: CICT = 4
Peripheral effective cutting edge count: ZEFP = 1

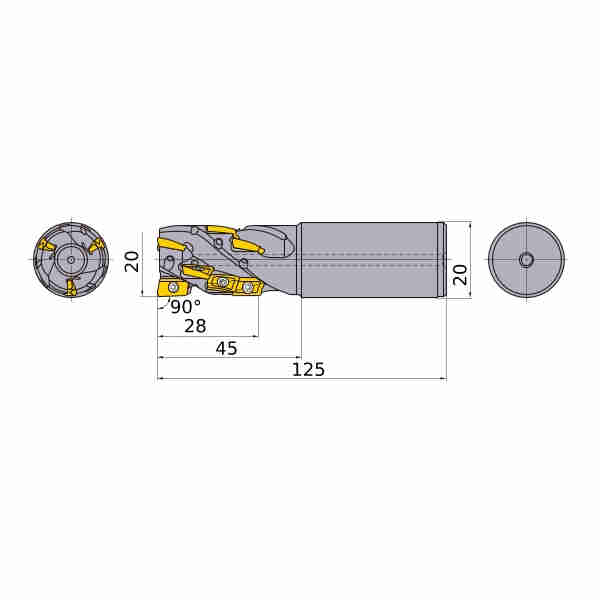

Drawing Number = 1
Insert = AOGT123602PEFR-GM, AOGT123604PEFR-GM, AOGT123608PEFR-GM, AOMT123602PEER-M, AOMT123604PEER-H, AOMT123604PEER-M, AOMT123608PEER-H, AOMT123608PEER-M, AOMT123610PEER-M, AOMT123612PEER-M, AOMT123616PEER-H, AOMT123616PEER-M, AOMT123620PEER-M, AOMT123624PEER-M, AOMT123630PEER-M, AOMT123632PEER-M
Classified Spare Parts = MK1KS, TIP07F, TPS25
