SKU = 8865597
Short Description = Kyocera KPKTB32 32JCT, Cut Off Tool Block
EDP = THP06810
ANSI Part Number = KPKTB3232JCT
ISO Part Number = KPKTB32-32JCT
Category = Indexable Cutting Tools > Cut-Off > Cut-Off Tool Blocks
Series = KPKJ
Series Description = KPK Cut-Off JCT

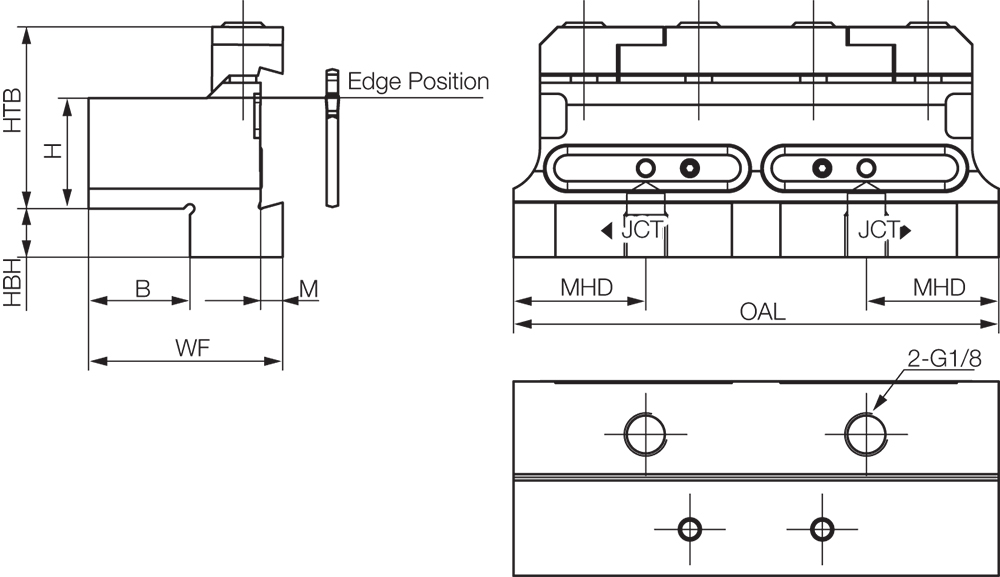

[B] Shank Width (Decimal Inch) = 1.1417
[B] Shank Width (mm) = 29.00
[H] Shank Height (Decimal Inch) = 1.2598
[H] Shank Height (mm) = 32.00
Application = Cut-Off
Coolant Through (Yes/No) = Yes
Hand = Neutral
Insert Holding Method = n/a
Material = Steel
Tool Block Style = KTKTB-JCT
Unit (inch/mm) = mm
Coolant Pressure Resistance (psi) = 1,015
[HBH] Head Bottom Offset Height (Decimal Inch) = 0.1969
[HBH] Head Bottom Offset Height (mm) = 5.00
[MHD] Mounting Hole Distance (Decimal Inch) = 1.1811
[MHD] Mounting Hole Distance (mm) = 30.00
Multi-Use Tool (Yes/No) = No
Compatible Blade Hand = Neutral
Compatible Blade (Partial) = KPKB32-…JCT, KPKB32-…
[HTB] Bottom to Top Height (Decimal Inch) = 1.6142
[HTB] Bottom to Top Height (mm) = 41.00
[WF] Functional Width (Decimal Inch) = 1.9685
[WF] Functional Width (mm) = 50.00
[OAL] Overall Length (Decimal Inch) = 4.3307
[OAL] Overall Length (mm) = 110.00
[M] Blade Mounting Width (Decimal Inch) = 0.1976
[M] Blade Mounting Width (mm) = 5.02
Features:
- KTKTB-JCT Neutral Cut-Off Tool Block
- 32.00mm Shank Height
- Compatible with KPKB32-…JCT, KPKB32-… Blades
-
