SKU = 8838386

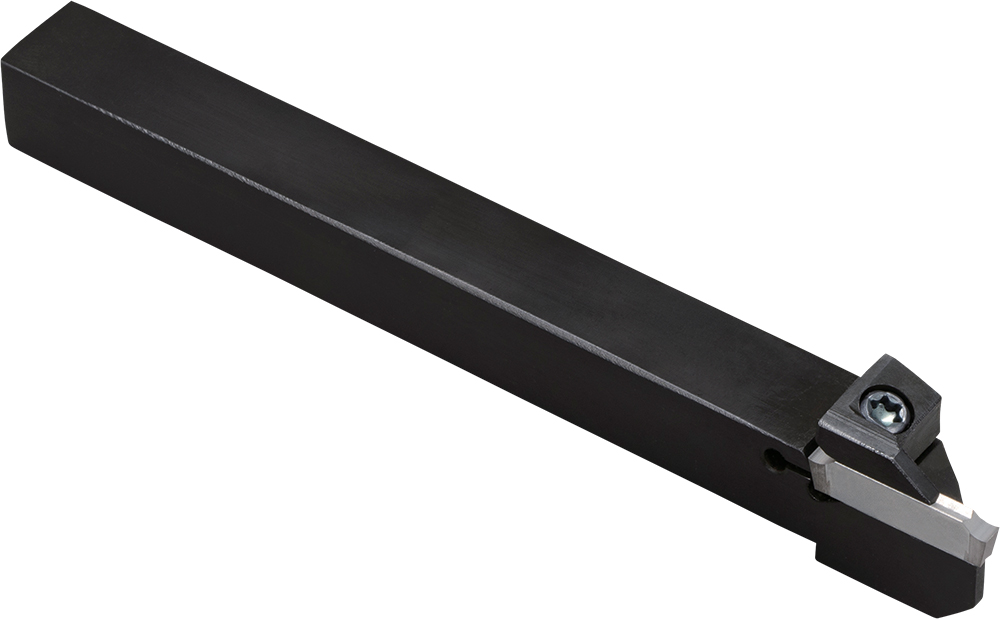

Short Description = Kyocera KGDL 1010JX13, External Grooving Toolholder
EDP = THT03721
ANSI Part Number = KGDL1010JX13*
ISO Part Number = KGDL1010JX-1.3
Category = Indexable Cutting Tools > Grooving > External Grooving Toolholders
Series = KGD
Series Description = KGD Grooving

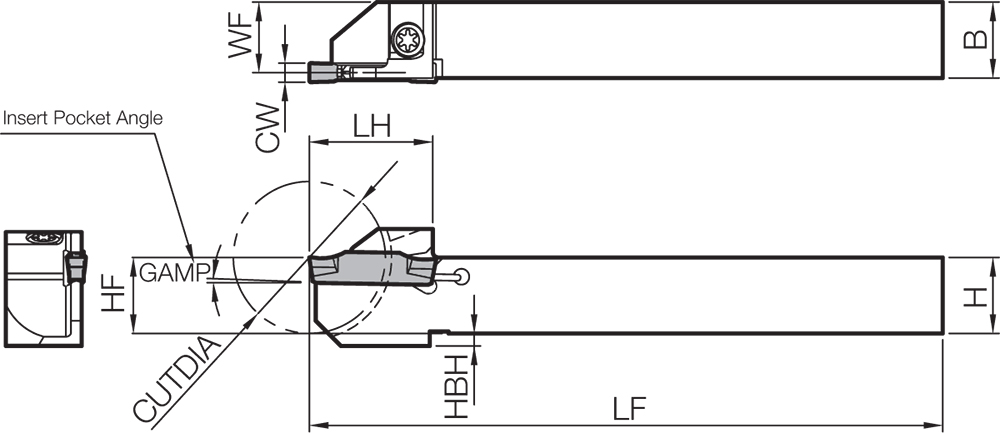

[B] Shank Width (Decimal Inch) = 0.3937
[B] Shank Width (mm) = 10.00
[CDX] Max Depth of Cut (Decimal Inch) = 1.5748
[CDX] Max Depth of Cut (mm) = 40.00
[CW] Cutting Width (Decimal Inch) = 0.0512
[CW] Cutting Width (mm) = 1.3000
[H] Shank Height (Decimal Inch) = 0.3937
[H] Shank Height (mm) = 10.00
Application = Cut-Off/External Grooving/Small Parts Machining
Coolant Through (Yes/No) = No
Grooving Type = External Grooving
Hand = Left-Hand
Insert Holding Method = Screw
Material = Steel
Toolholder Style = KGD
Unit (inch/mm) = mm
Coolant Pressure Resistance (psi) = n/a
Compatible Toolholder (Partial) = n/a
[GAN] Insert Rake Angle (Degree) = Insert Dependant
[GAMP] Rake Angle Axial (Degree) = 5
[HF] Cutting Edge Height (Decimal Inch) = 0.3937
[HF] Cutting Edge Height (mm) = 10.00
[LF] Functional Length (Decimal Inch) = 4.7244
[LH] Head Length (Decimal Inch) = 0.7087
[LH] Head Length (mm) = 18.00
[LN] Neck Length (mm) = n/a
[WF] Cutting Edge Distance (Decimal Inch) = 0.3740
[WF] Cutting Edge Distance (mm) = 9.50
[HBH] Head Bottom Offset Height (Decimal Inch) = 0.0787
[HBH] Head Bottom Offset Height (mm) = 2.00
Multi-Use Tool (Yes/No) = Yes
Compatible Insert Hand = Neutral
Compatible Inserts (Partial) = GDM13…
Coolant Hole Diameter (mm) = n/a
Compatible Blade (Partial) = n/a
Features:
- Improved insert clamping force generated by an innovative toolholder design
- Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
- Compatible with GDM13… Inserts
-
